Shock Guards for Arrma 6S Vehicles
Shock Guards for Arrma 6S Vehicles (Set of 4)
Part Number: MS2408

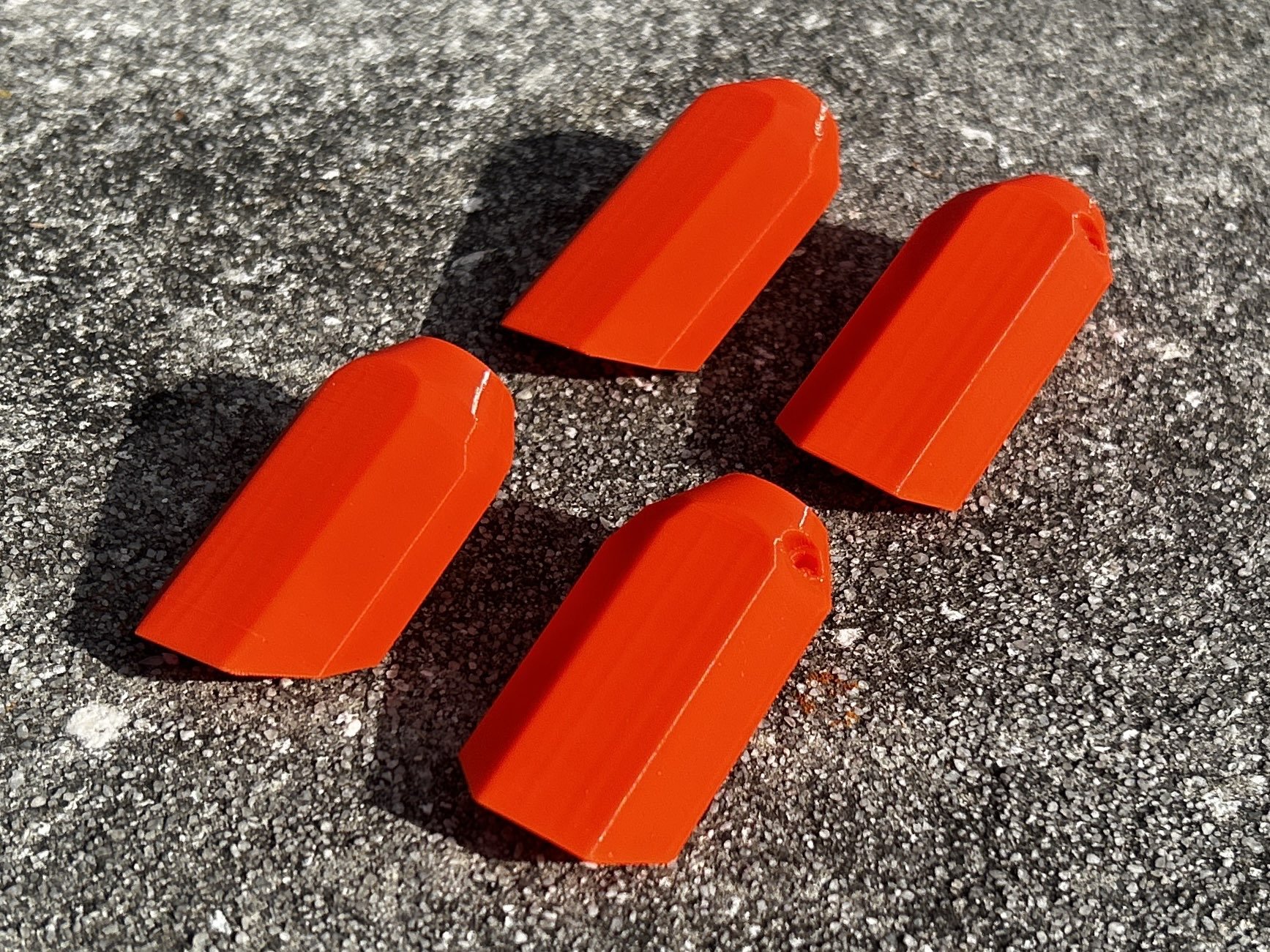

These Shock Guards are designed to fit the stock Arrma 6S shocks and will protect them from hard impacts and debris.
They directly replace the lower spring retainer. You will not need to modify the truck at all. They will also not interfere with the suspension movement of the trucks either!
Installation

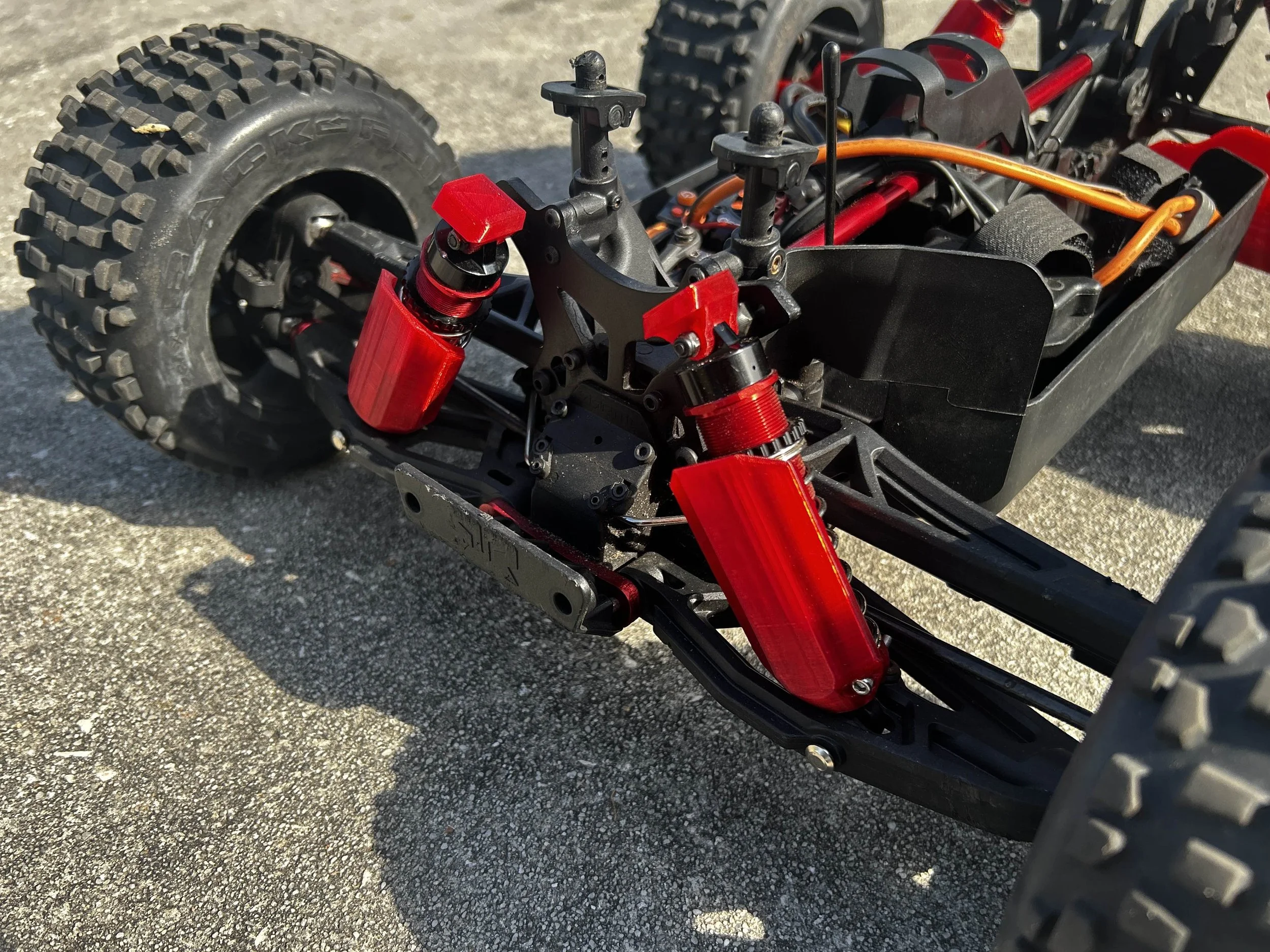

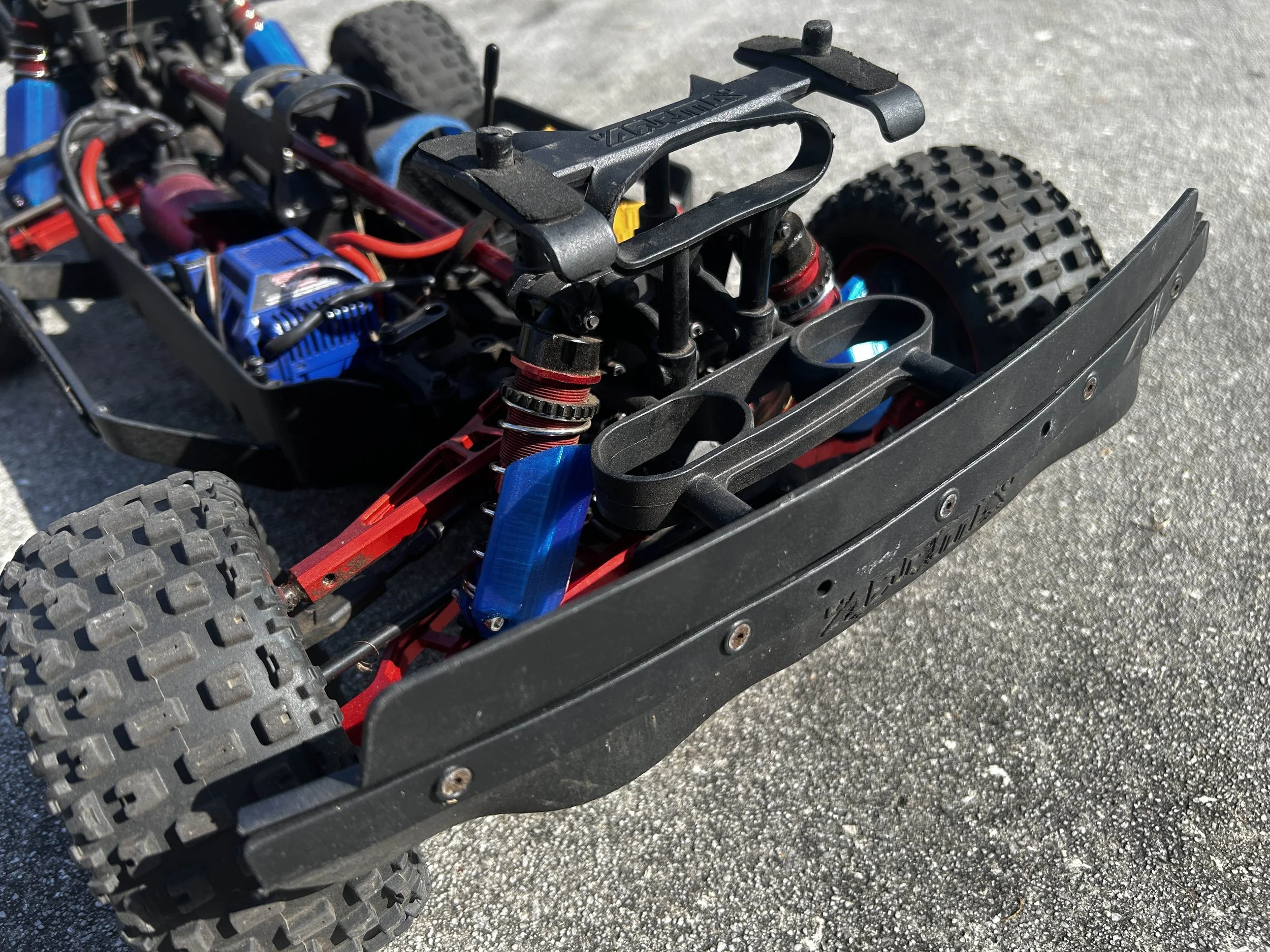

To help the installation go smoother, it is best to remove the lower shock mount screw and rotate the shock upwards to give you better access. Then, you will want to remove the stock lower spring retainer and set it aside. Next, while compressing the spring upwards slide the Shock Guard onto the rod end. (NOTE: There are Left and Right side Shock Guards. The bolt head should be facing forward, and on the outer side of the shock body. Please refer to photos.)
Make sure the spring is seated flat and that the shock moves freely. Thread the included bolt through the holes and clamp the guard to the rod end.
DO NOT OVERTIGHTEN. There only needs to be a small amount of pressure to secure the guards.
Thats it! Reinstall the lower shock mount and repeat for the other three shocks.
Stainless Steel hardware included.
Colors available:
Black, Red, Blue, Green, Orange, White
Compatible With:
Stock Mojave 6S Shocks
Stock Kraton 6S Shocks
Stock Outcast 6S Shocks
Stock Notorious 6S Shocks
Stock Talion 6S Shocks
Stock Typhon 6S Shocks
Stock Fireteam Shocks
Stock Big Rock 6S Shocks
Check out the rest of my shop to find more R/C related products! Made with top quality materials that will last through your hardest bash sessions!
Made in the USA!
