Mini Maxx Wing Mount and Body Inserts

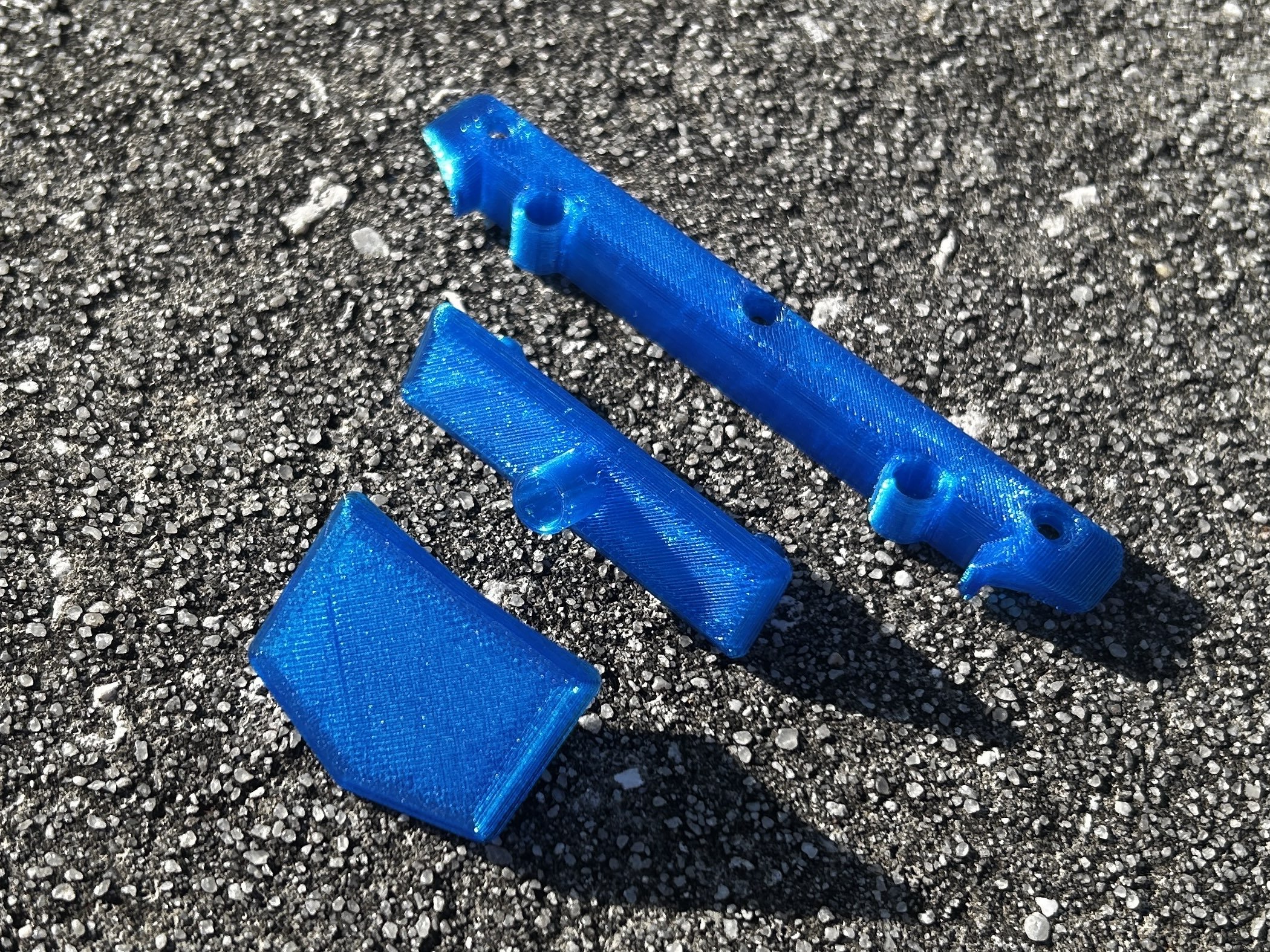

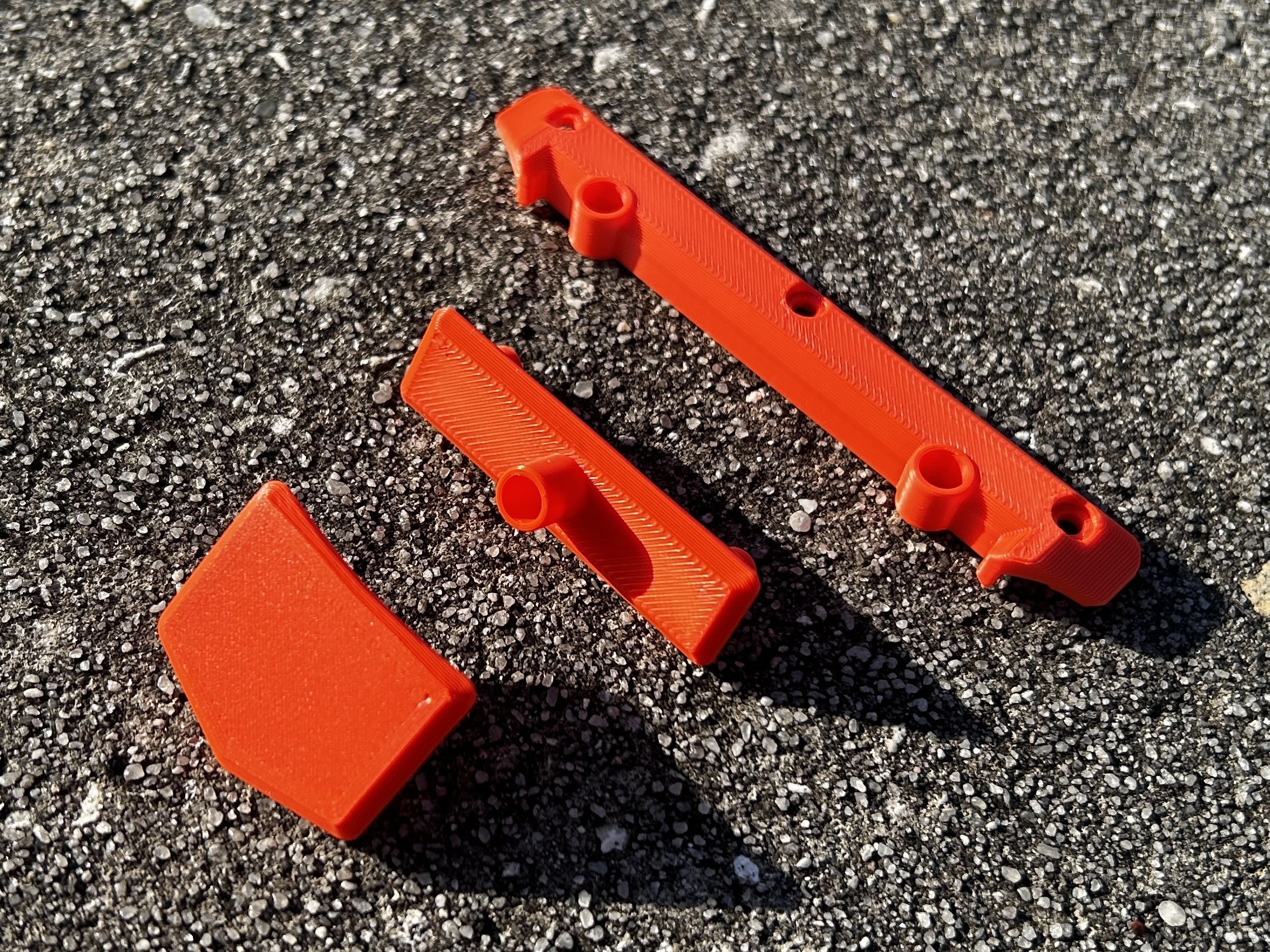

Traxxas Mini Maxx Wing Mount and Body Inserts (Set of 3)
Part Number: MS1609
If you want to mount the Rustler 4WD wing to your Mini Maxx, then this is the kit for you! Customize your truck even more with these parts. The Wing Mount is strong enough to carry the weight of the whole truck too!
Installation:
First, line up the rear skid and drill out the holes using a 1/8” drill bit. Do not mount the skid just yet. Then, remove and replace the front and rear body inserts with the ones provided. Use the center hole of the rear body insert to drill the hole in the body for the front wing mount. Before mounting the wing to the rear skid, it is easier to place the three body mounting bolts in the holes. Then, go ahead and mount the wing to the rear skid. After this is done, you can go ahead and mount the skid/wing assembly to the body. The front wing mounting post should align with the rear body insert. Use the slits in the wing to access the bolts and lock the rear down. Then bolt the front wing mount down from inside the body. Please refer to the photos for how the final assembly should look.
WING IS NOT INCLUDED
This wing mount is made for use with Traxxas Part# 6721
All required hardware is included.
Colors Available:
Black, Red, Blue, Green, Orange, White
Compatible With:
Stock Mini Maxx Body
Rustler 4WD Wing Part# 6721
Check out the rest of my shop to find more R/C related products! Made with top quality material that will last through your hardest bash sessions!
Made in the USA!
